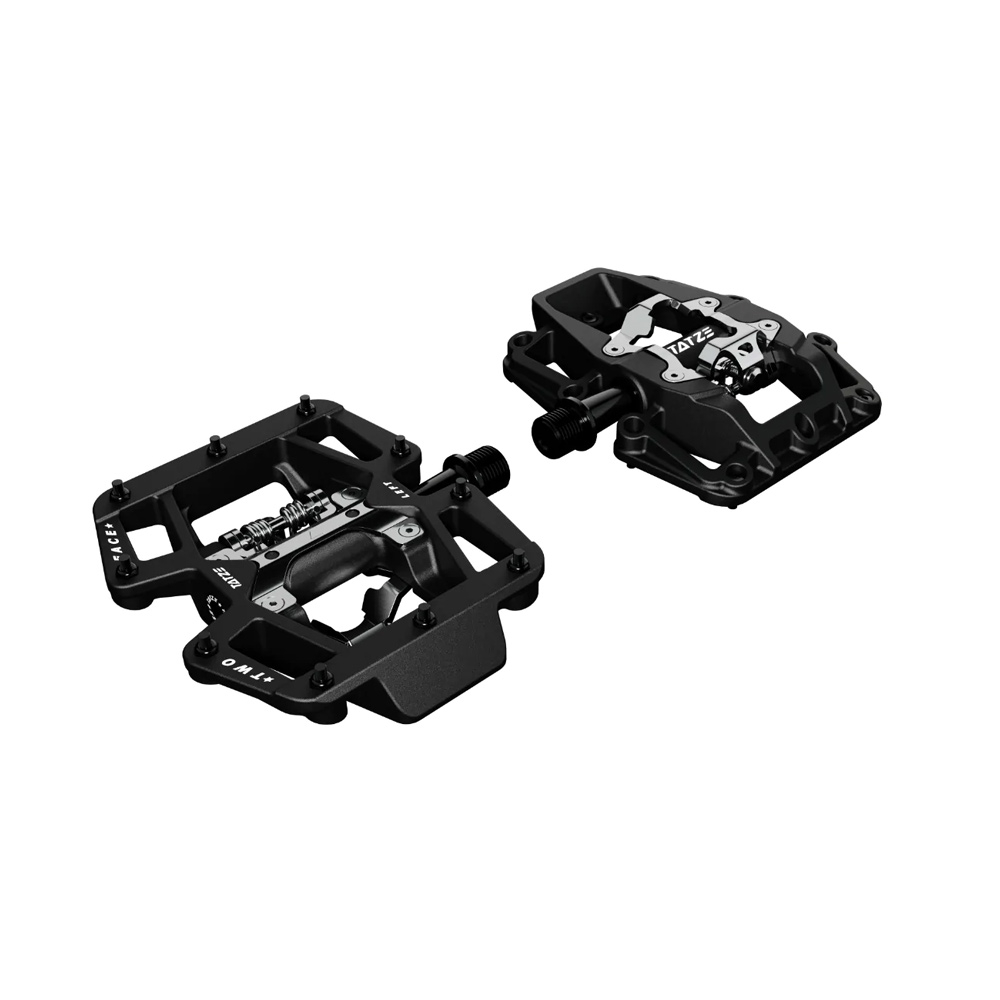

Tatze Pedal Two Face Composite - Black

The TWO-FACE Composite is an extremely potent flat pedal and an efficient clipless pedal at the same time. 10 PIN's with targeted superelevation provide enormous grip, but also on the click side with large contact surfaces a particularly rich connection between pedal and shoe is established.For an optimized ground clearance, the flat to the click side is rotated by 2.5 °, which increases the ground clearance at the crucial points by 5mm.

A defined side selection is particularly important for a combination pedal. With the TWO-FACE, the side is retained after unloading, so that the same side/function is available again when the pedal is used again. Thanks to the selection of high-quality materials and manufacturing processes, the TWO-FACE composite is extremely durable.

TECHNICAL DATA:

• Flat side with 10 PINS (W: 100mm L: 107mm).
• Click side with cage (W: 63mm L: 97mm)
• Pedal body: fiberglass reinforced thermoplastic
• Steel axle
• Bearing: 1x plain bearing + 2x ball bearing
• Seal: 2x double lip seal + end cap
• Click mechanism:
• Release hardness 4-12Nm adjustable
• float 5°
• Release angle 12°
• Release by turning the foot outwards (not by lifting)
• Weight: 436g
