Tatze Pedal MC-FLY Ti

Tatze MC-FLY Titan pedal

The MC-FLY with titanium axle is the lightest trail and enduro pedal on the market and offers perfect contact between pedal and shoe with a large contact surface. This connection guarantees maximum control over the bike.

The MC-FLY is SPD compatible and offers with 5° float enough freedom of movement for an active riding style and leaves with a release angle of 12° enough space to always be master of the situation between clicking in and out. Of course, the release hardness can also be adjusted and can be read on the mechanism.

A particularly important feature are the 4 optional PIN's which are arranged around the click mechanism. With these PIN's the contact pressure between shoe and pedal can be adjusted. You have too much play? Simply insert the PIN's and lock in the height until the contact pressure fits perfectly.

The pedal promises durability thanks to the use of a wide needle bearing on the inside and a deep groove ball bearing on the outside as well as multiple sealing against dirt and moisture.

Specifications

• SPD-compatible
• Release hardness 4-12Nm adjustable
• Float 5°
• Release angle 12°
• Adjustable contact pressure between shoe and pedal via 4 optional PINS

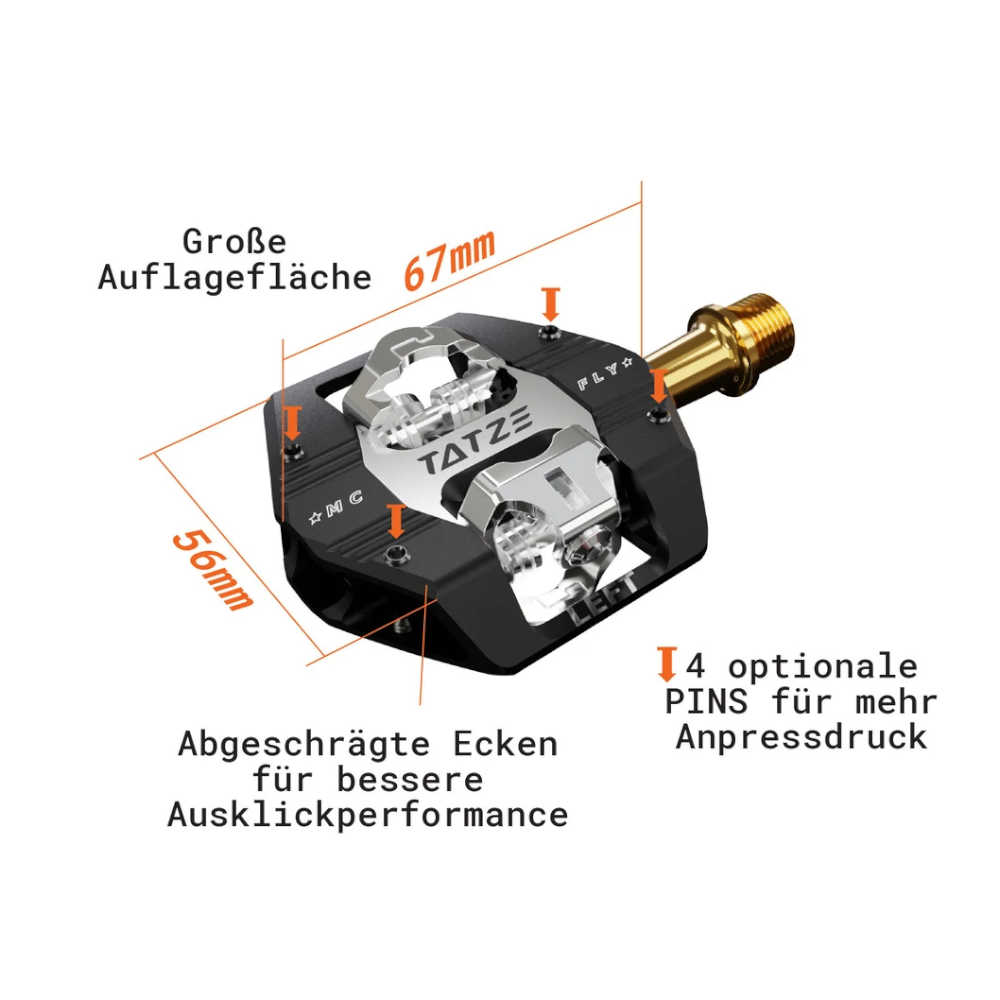

• Compact pedal with large contact surface: W: 67mm L: 56mm H: 13-17mm
• pedal body: aluminium 6061-T6, anodized
• Axle: hardened and coated titanium axle (change to steel axle version)
• Bearing: needle bearing and deep groove ball bearing, both 2-fold sealed
• Weight: 305g!!!

Developed and tested in Tirol/Austria
