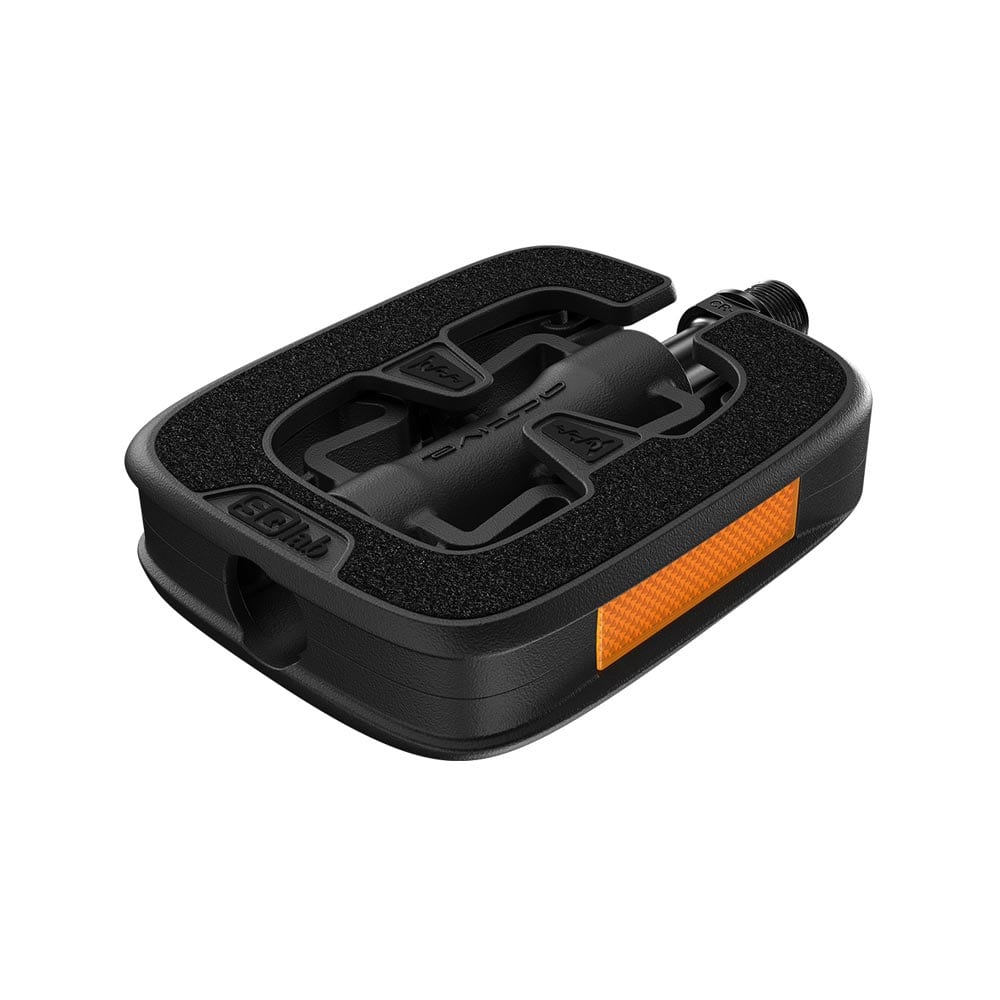

SQ-Lab pedals 502 active

Knee-friendly: the new active pedal
Freedom starts at the foot: Previous studies have been able to prove that releasing the axial rotation by 10° on clipless pedals can reduce the potential for overuse injuries in the knees - this assumption was investigated as part of a master's thesis and the 502 active system pedal was developed for trekking cyclists based on this: the first active pedal on the market for a knee-friendly, ergonomic foot position. The SQlab 502 active pedal is the first city pedal with lateral freedom of movement and good grip at the same time.

Four different axle lengths ensure a physiologically natural foot position on the pedal. This prevents one-sided strain - especially in the case of fibula head syndrome.

• The first active pedal on the market
• Knee-friendly
• STVZO approval (incl. reflectors)
• 4 axle lengths for a natural foot position

TECHNICAL DATA:

• Item number(s): 2808 / 2809 / 2810 / 2811
• Weight in g: 465 / 479 / 500 / 517
• axle length in mm: -5 / 0 / +8 / +15
• Distance crank to pedal centre in mm: 56 / 61 / 69 / 76
• Pedal surface in mm: 105 x 86 mm
• Pedal body material: Polyamide
• Pedal axle material: CrMo
• Pin height in mm: -
• Click system: Flat
• Freedom of movement in °: + / - 10°
