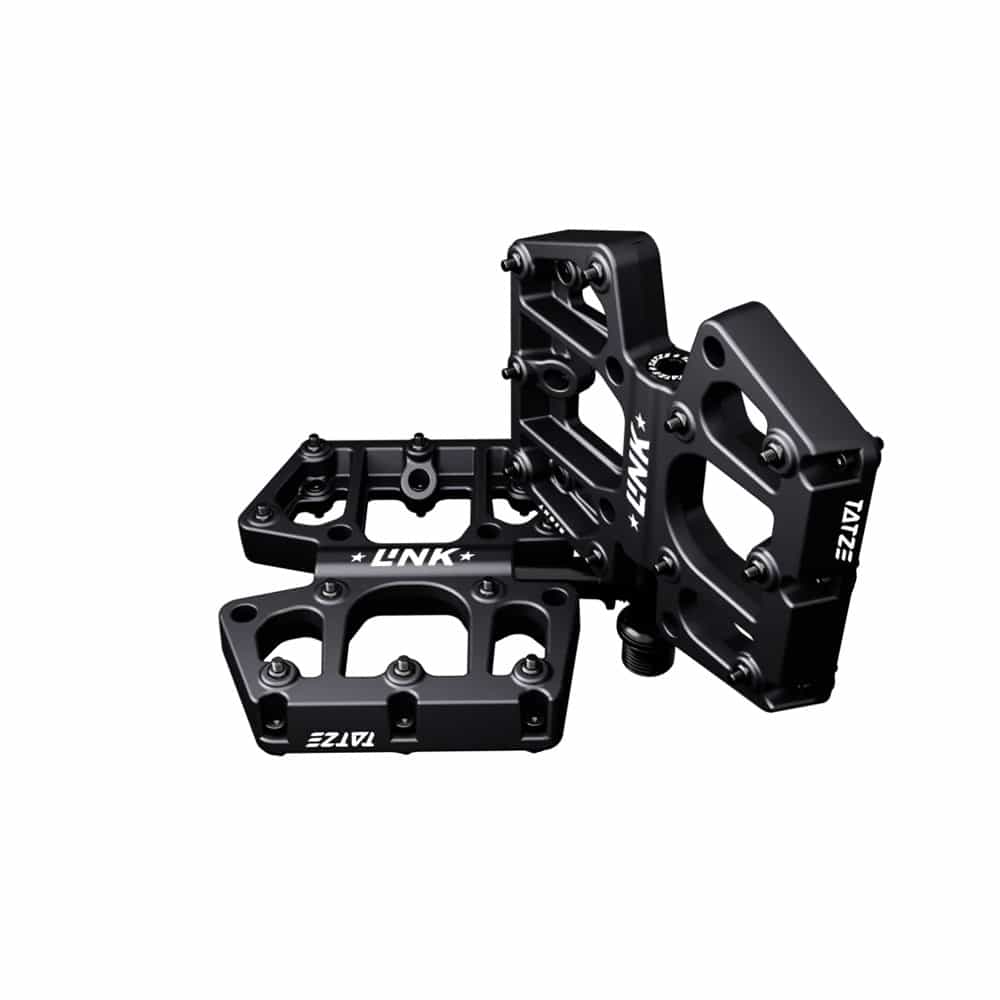

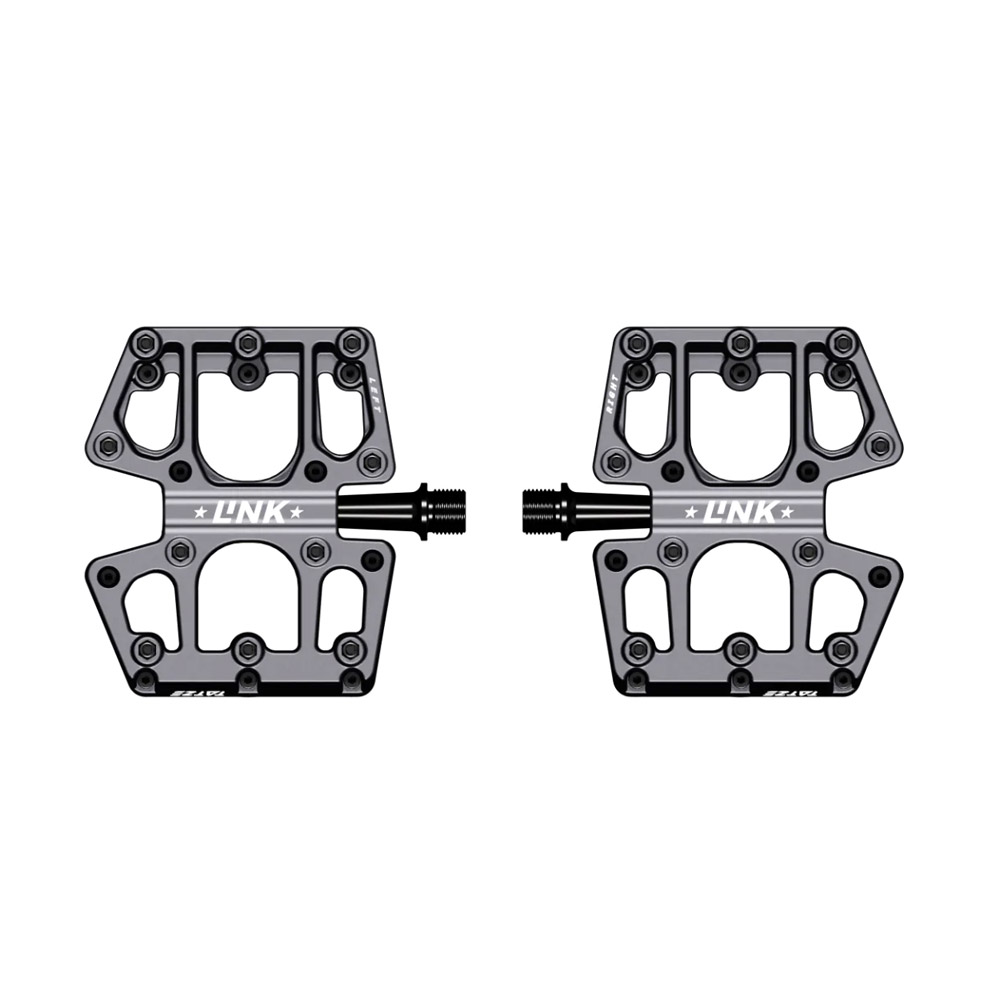

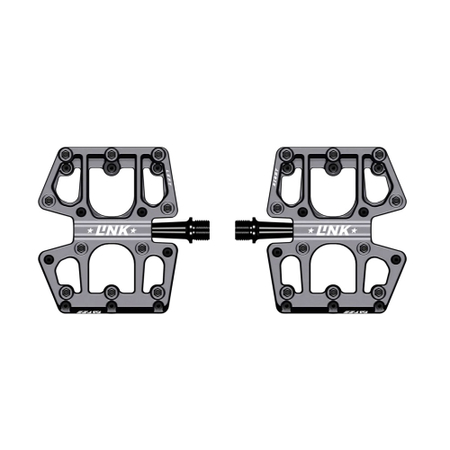

Tatze Flat pedal Link Composite - Black

The LINK Composite is an extremely grip strong flat pedal with GRP pedal body. The large platform with 108cm2 (111x97mm/LxW) and 40 PINS with targeted superelevation provide enormous grip and a particularly rich connection between pedal and shoe. Unwanted ground contact avoids the LINK by its low height of 13.5mm. The LINK Composite has a plain bearing inside and 2 side by side installed deep groove ball bearings outside. For sealing, 2 double lip seal rings are installed, which shield the bearings from dirt and moisture. The bearing and seal unit makes the pedal sustainable in terms of a long service life. In addition, the bearings and seals can be replaced in 5 minutes with the optional refresh kit to set the clock back to 0.

PRODUCT SPECIFICATIONS:

• Large platform with selectively raised PINS.
• Extra hard steel PINs (12,9)
• Pedal body made of GRP
• Steel axle

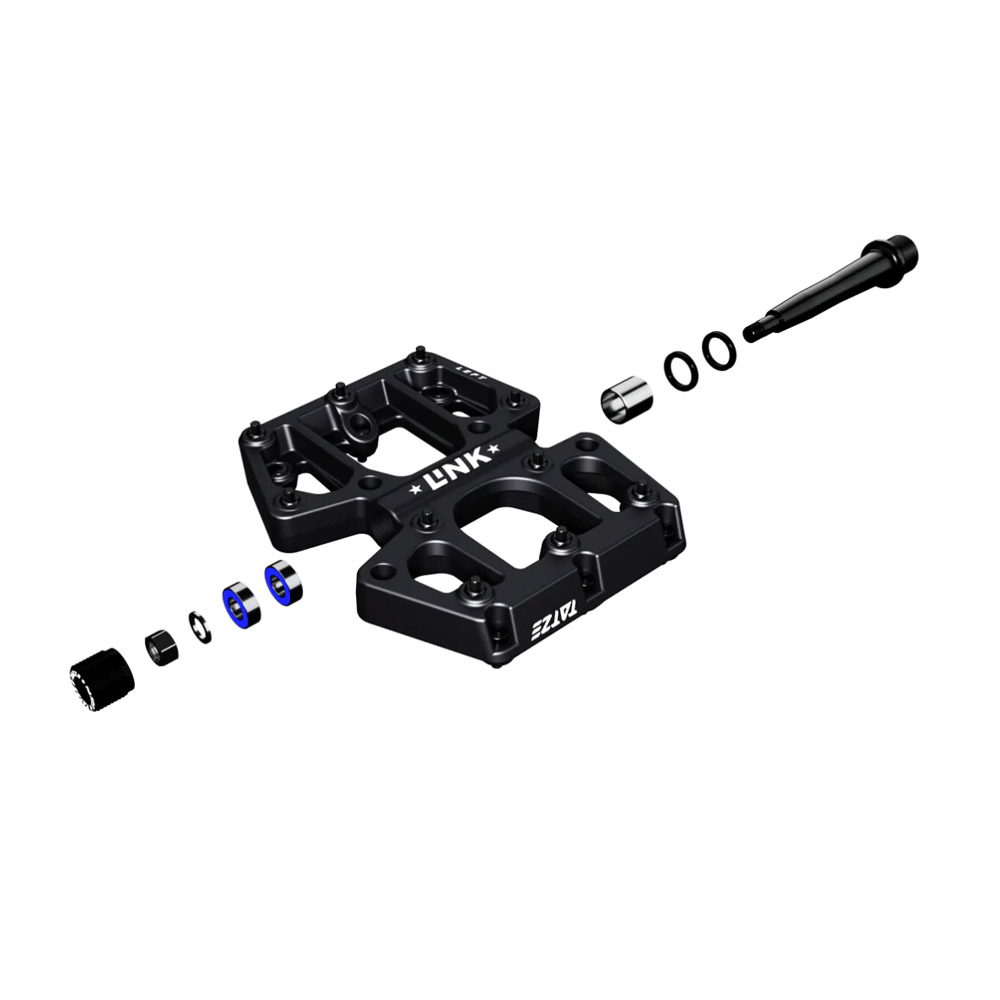

• Bearing: Plain bearing and 2x deep groove ball bearing (multiple sealed)
• Certified according to Zedler Advanced XXL test
• Scope of delivery: pedals and spare pins with key
• Weight: 358g
