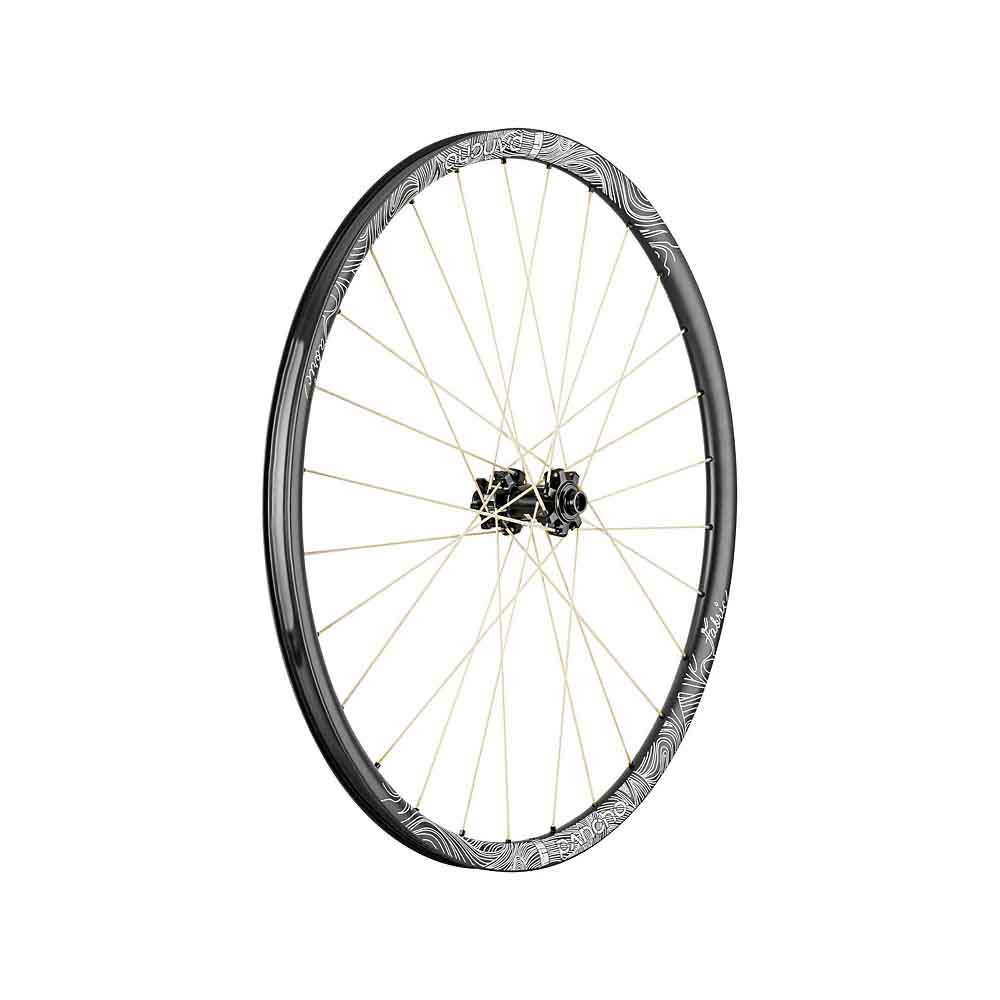

Panchowheels wheelset Fabric XC22 29ner textile Sram

Panchowheels promises weight savings of up to 300 g per wheelset with its synthetic spoke - a considerable leap. However, this is not supposed to have been bought with worse properties or compromises in durability and load capacity. What's behind the fiber spoke? With a density of just 1.4 g/cm3, the raw material called Vectran ® is almost half the weight of aluminium and lighter than carbon fibre. More importantly, it weighs only 1/6 of the steel normally used for spokes. Vectran fibers are spun from liquid crystal polymers and gathered into fiber bundles, twelve of which are then braided into a PI ROPE spoke. A special coating is used to protect the fibers from UV radiation and to provide additional abrasion protection.

Features

• weight: 0.5kg
• Material: Carbon
• Brake mount: IS (6-hole)
• Axle size: 110/15mm
• Rim: Panchowheels Fabric textile
• Hub: Panchowheels hub MTB 6-hole
• Spoke type: Spoke Vectran Textile
• Nipple colour: black
• Diameter: 29er
• Spokes: 28
• Rim width inner: 22,7mm
• Rim width outside: 28mm
• ERD: 600
• Rim height: 22,0mm
• Max. Weight: 110kg
