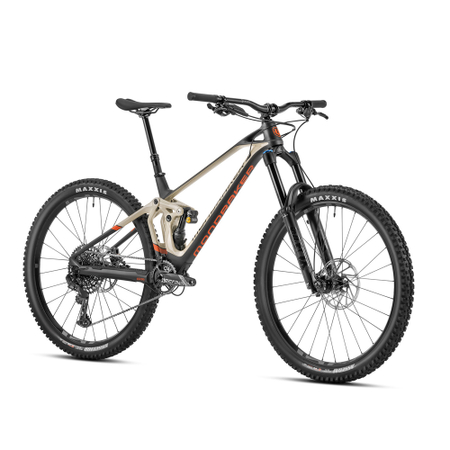

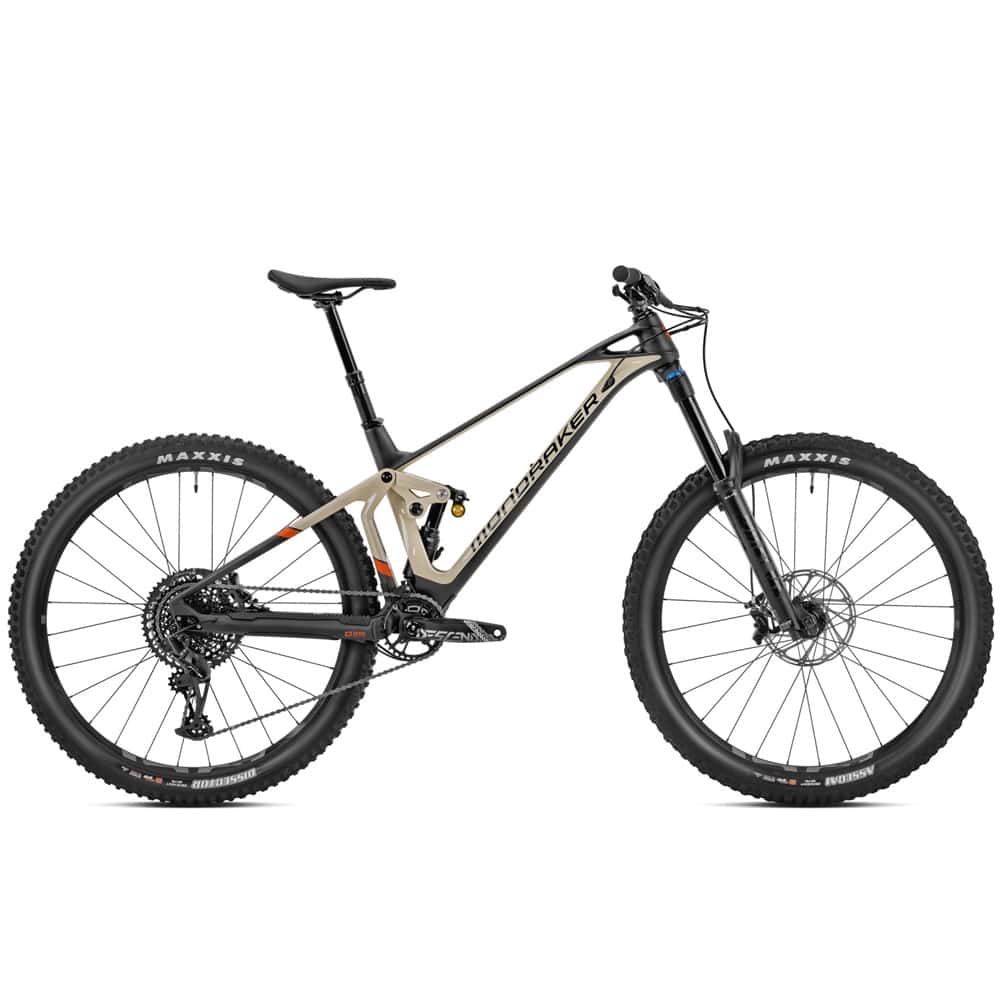

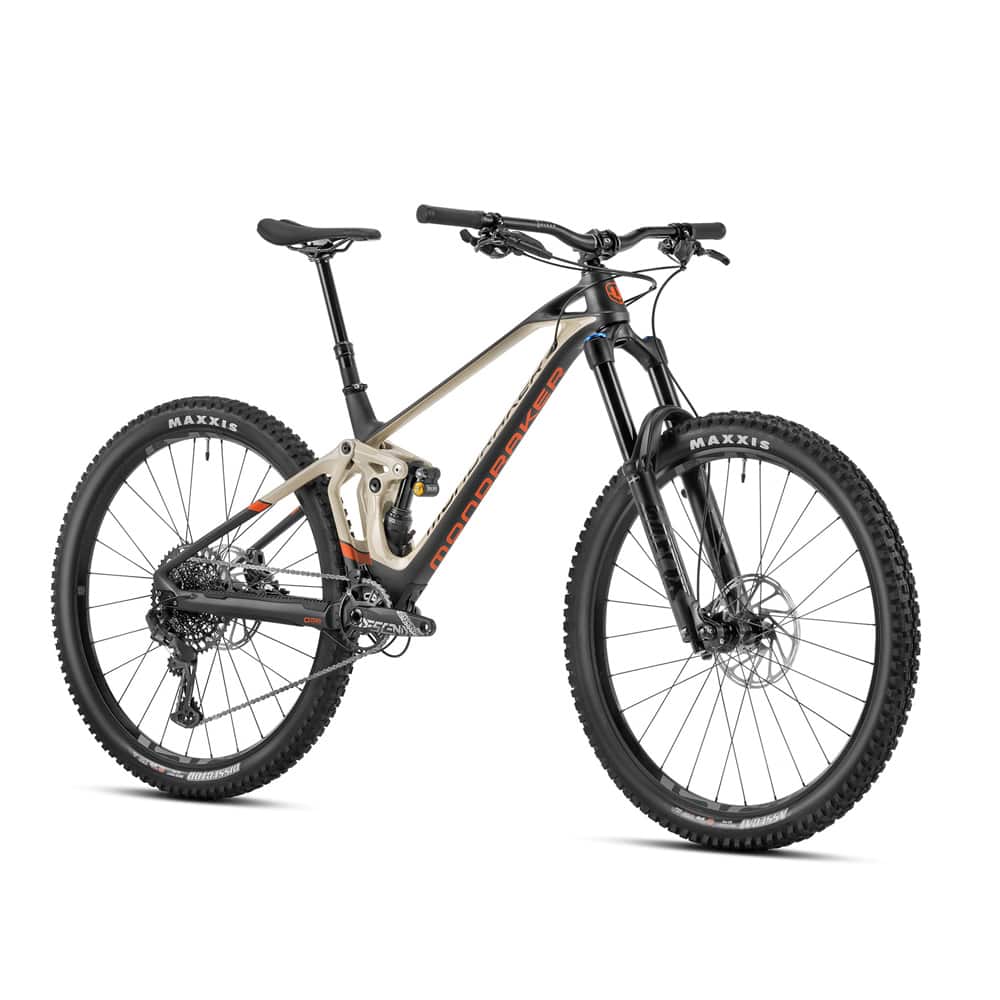

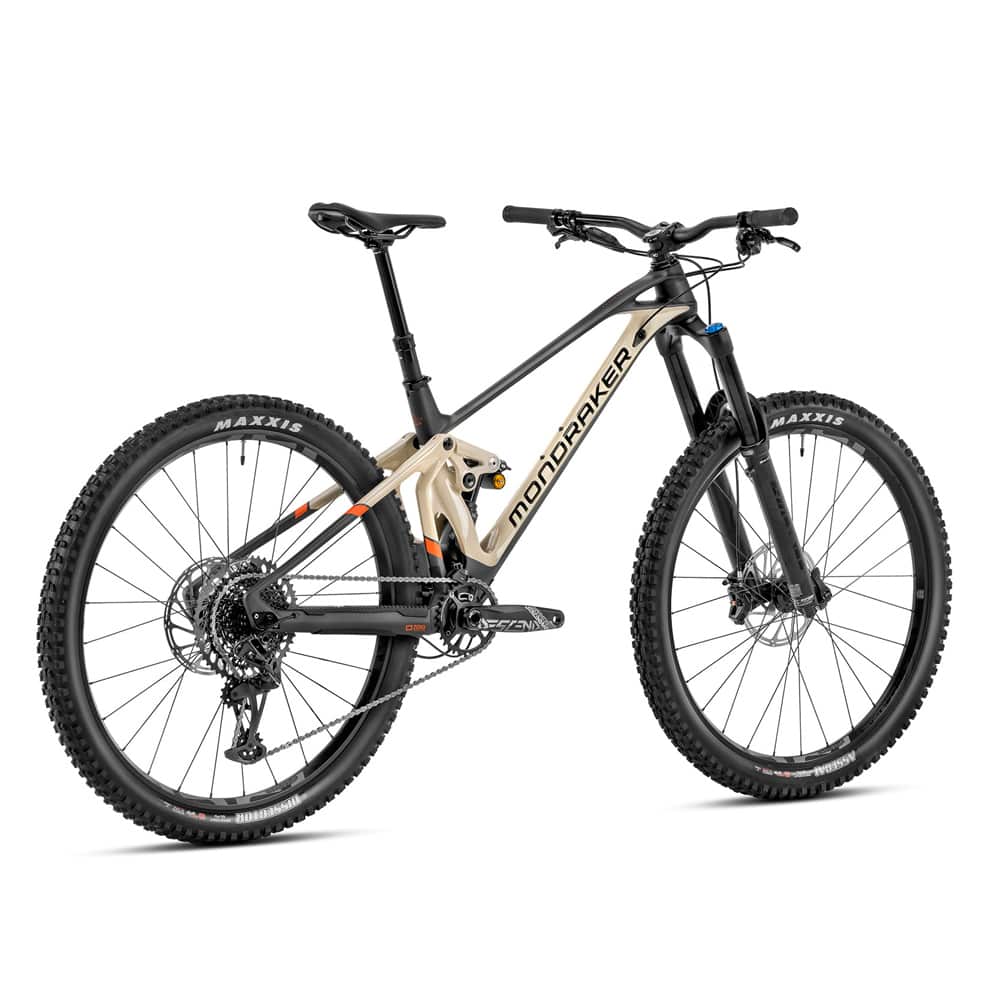

Mondraker Superfoxy Carbon R 2023
5.174,20 €
-25%
6.899,00 €
incl. VAT
free shipping*
The SUPERFOXY CARBON follows the example of the SUMMUM CARBON, which is the lightest bike on the DH tracks of this world. And it clearly shows what we mean by "Super Enduro". 170mm travel in the front and 160mm in the rear leave no doubt about what this bike was built for. And the best thing about it: thanks to the Sram 12-speed gears, you can comfortably take the way back up under your own power and do it all over again! Lightweight and manageable, the Fox 38 fork and Öhlins TTX Air shock work together with the SuperBoost 12x157mm rear triangle to provide unparalleled stiffness and make even the most brutal lines a breeze.
Gears
| Rear derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Shifter | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Derailleur hanger | Mondraker M071 |
Brakes
| Front brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake levers | Sram Code R, tool-free reach adjust |
Cockpit & Seating
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Handles | ONOFF Desert, 1lock-on, 135mm |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
Frame
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom b |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Suspension
| Front travel | 170mm |
| Rear shock absorber | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| Dämpfer Hardware | C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E) |
Drive Unit
| Crank | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Chainrings | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73mm |
| Front tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear tire | Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
Other
| Model year | 2023 |
| Color | Beige/Braun |
| Weight | 15,6 kg |
| Gender | Unisex |
