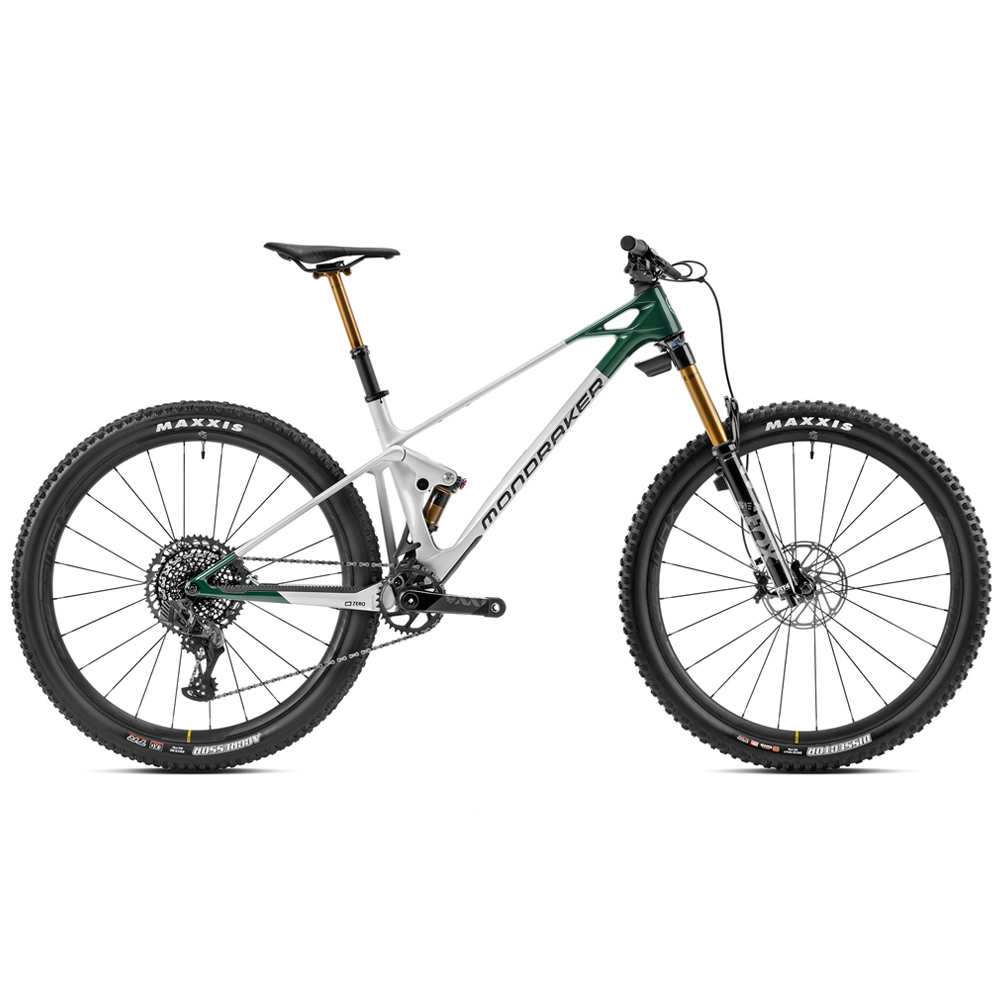

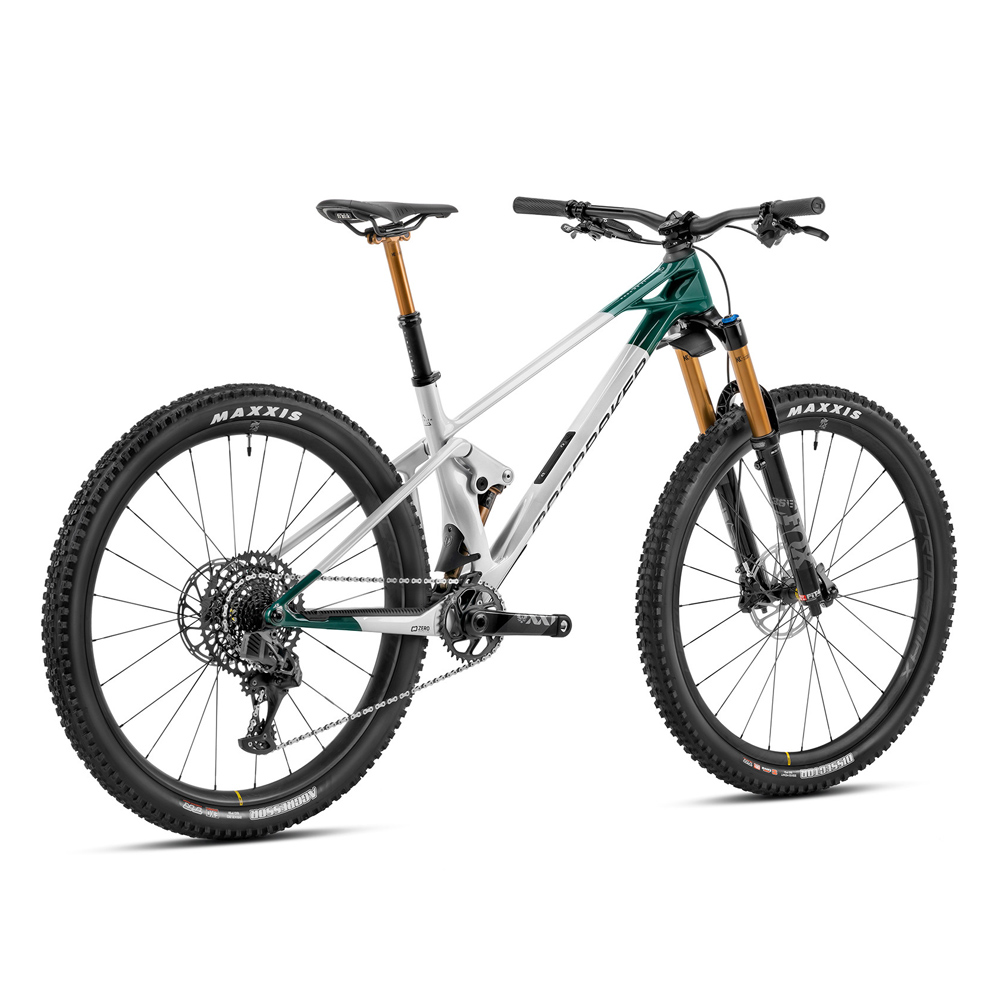

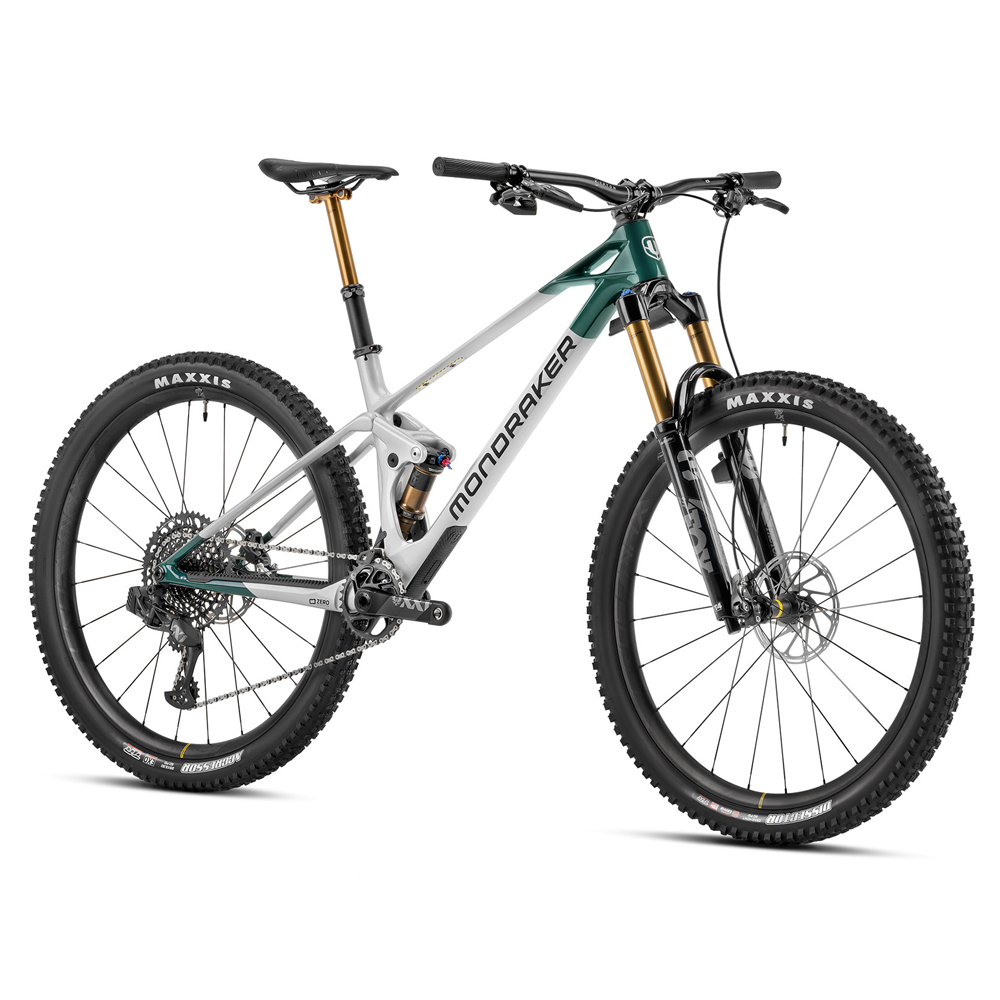

Mondraker Raze Carbon RR SL 2023
7.279,30 €
-30%
10.399,00 €
incl. VAT
free shipping*
With 150mm of travel in front and 130mm in the rear, the RAZE is no ordinary trail bike. Its kinematics and the specific settings of its chassis give it capabilities that are completely new in this discipline. It also features the market-leading technologies found only in our top bikes: STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND. The individual layers of its carbon frame are carefully arranged by hand and fulfill specific purposes and objectives depending on the area of each frame. The structure thus obtained provides maximum comfort and vibration damping, as well as an extremely low weight combined with tremendous strength. Last season it was voted the best trail bike of 2022 by the prestigious MBR (Mountain Bike Rider) magazine in the UK.
Gears
| Rear derailleur | Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 |
| Cassette | Sram XG-1295, 10-52T, 12s |
| Shifter | Sram Eagle AXS Rocker paddle, 12s |
| Derailleur hanger | Sram UDH |
Brakes
| Front brake | Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear brake | Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake levers | Sram G2 RSC, SwingLink, tool-free reach adjust |
Cockpit & Seating
| Stem | ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Handlebar | ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Handles | ONOFF Desert, 1lock-on, 135mm |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm |
| Saddle | Fizik Antares R7 |
Frame
| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, de |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
Suspension
| Front travel | 150mm |
| Rear shock absorber | Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Dämpfer Hardware | Light compression,light rebound, air volume spacer 0.6 |
Drive Unit
| Crank | Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chain | Sram GX Eagle, 12s, Powerlock |
| Rims | Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front hub | Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear hub | Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
| Chainrings | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73mm |
| Front tire | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear tire | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Spokes | 24 straight-pull double butted spokes |
Other
| Model year | 2023 |
| Color | Weiß |
| Weight | 13,0 kg |
| Gender | Unisex |
