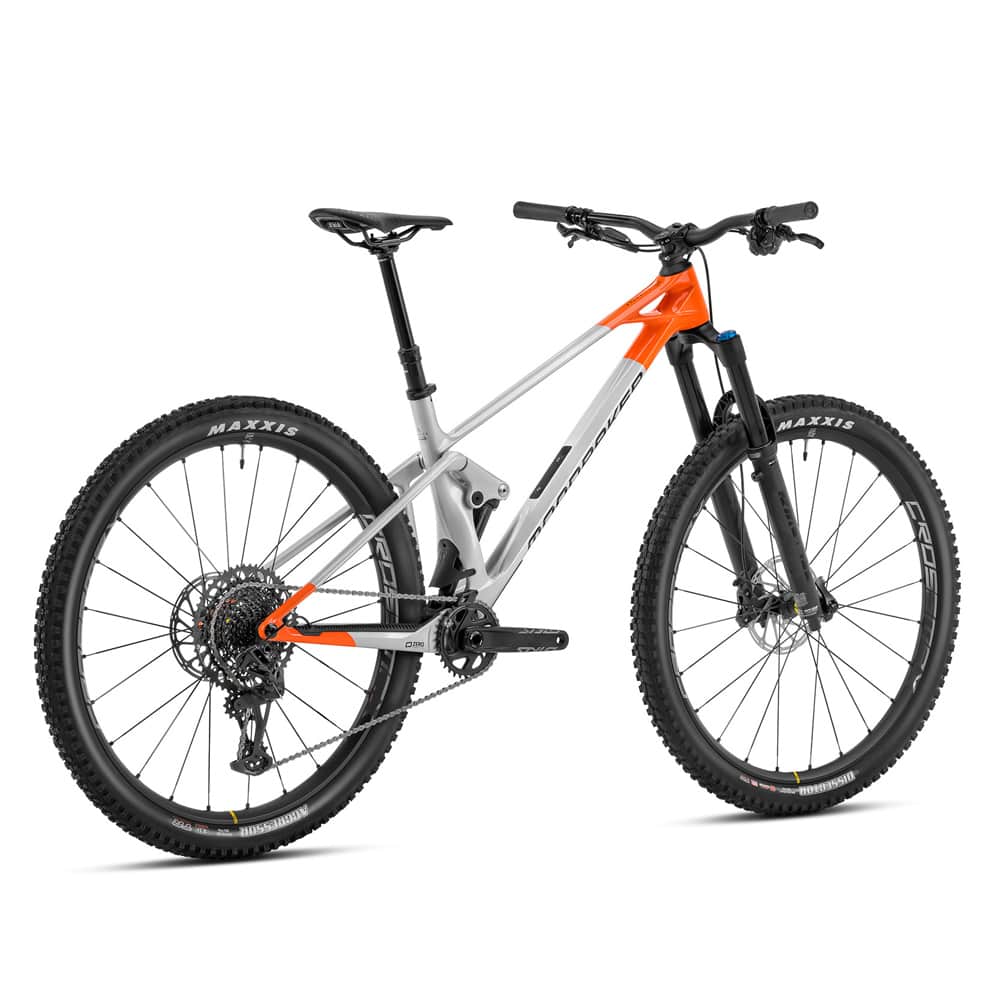

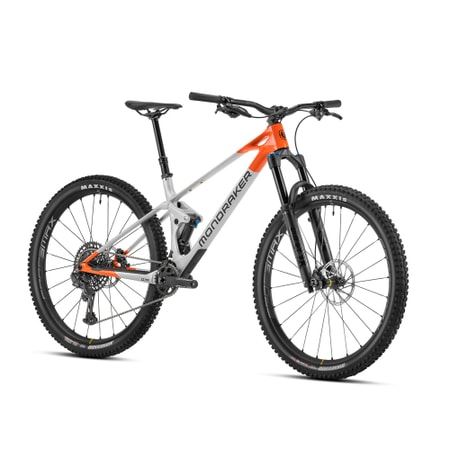

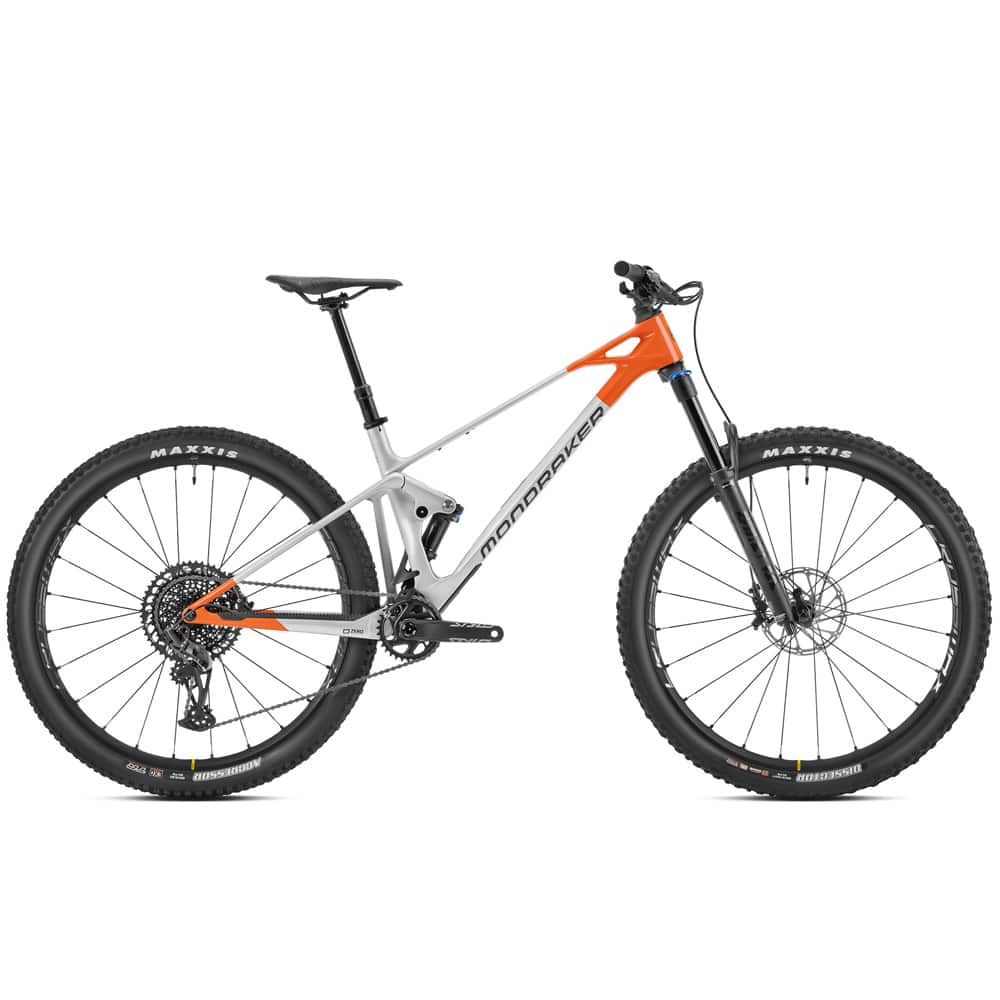

Mondraker Raze Carbon R 2023
4.199,30 €
-30%
5.999,00 €
incl. VAT
free shipping*
The RAZE CARBON R is the ideal bike if you want an aggressive trail bike that also goes really well forward. Its climbing characteristics are outstanding, so that only your legs set limits to the way up. But as stunning as this bike is uphill, it's an even better tool for the job downhill. Its damping, lightness and stiffness make it the unrivaled best all-purpose bike. Our exclusive technologies STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND are of course also on board the CARBON R.
Gears
| Rear derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Shifter | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Derailleur hanger | Sram UDH |
Brakes
| Front brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake levers | Sram G2, SwingLink, tool-free reach adjust |
Cockpit & Seating
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Handles | ONOFF Desert, 1lock-on, 135mm |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | Fizik Antares R7 |
Frame
| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, de |
| Frame-Material | Carbon |
| Wheel-Size | 29" |
| Fork | Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Suspension
| Front travel | 150mm |
| Rear shock absorber | Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings |
| Dämpfer Hardware | Light compression, light rebound, air volume spacer 0.6 |
Drive Unit
| Crank | Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front hub | Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear hub | Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
| Chainrings | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73mm |
| Front tire | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear tire | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Spokes | 24 straight-pull double butted spokes |
Other
| Model year | 2023 |
| Color | Silber |
| Weight | 13,5 kg |
| Gender | Unisex |
