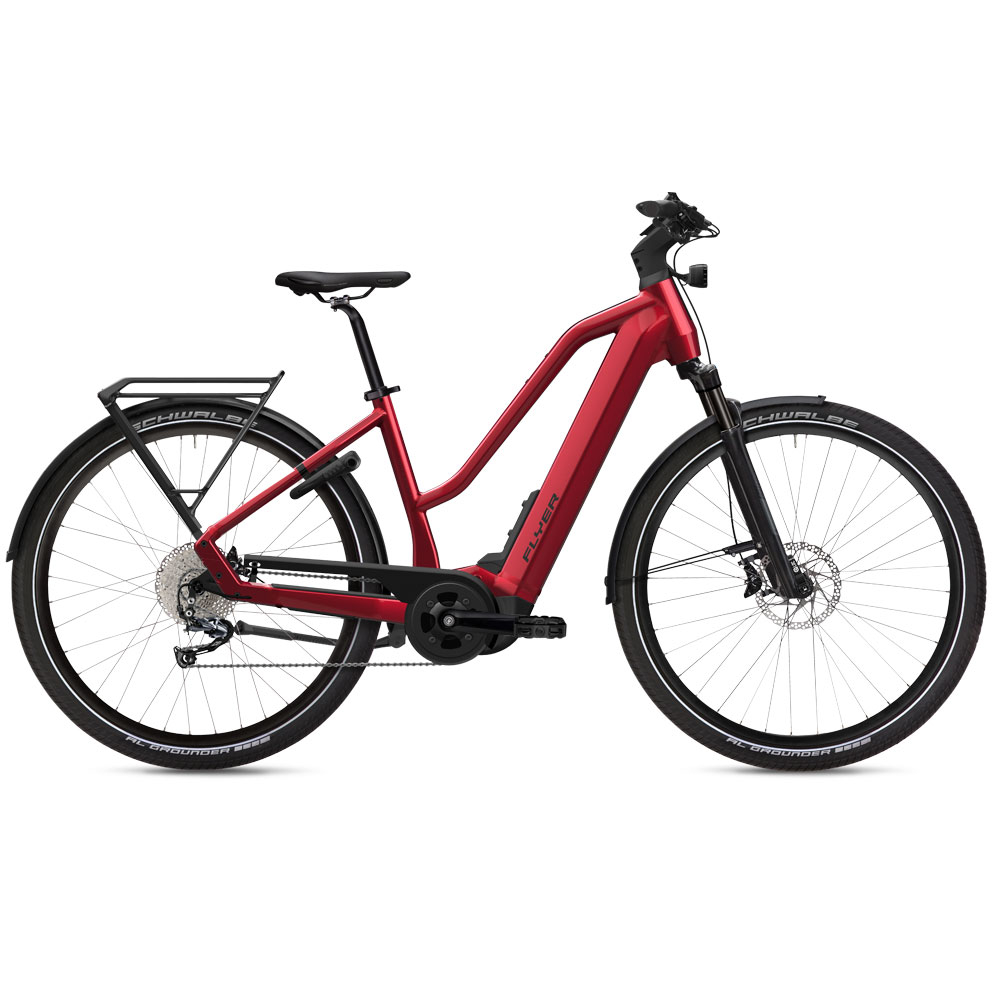

Flyer Upstreet 5.10 Mixed mercury red 2023

3.599,20 € -25% ~~4.799,00 €~~ incl. VAT free shipping*

10% extra savings!

Price with voucher: 3.239,28 €

Gutscheincode: HERBST24

Date expire: Nov 3, 2024

Calculate frame height

Please select your desired variation to put the product into cart.

Product description

Nimble, smart and ready for any challenge - that's how the Upstreet presents itself. The smart drive system features GPS navigation and the option of setting the four assistance levels exactly as you wish. The powerful motor with generous battery and optional "range extender" enables new range records. The FLYER stem, through which the cables are routed directly into the frame, ensures order on the handlebars and a particularly clean look. The Upstreet is available in three different frame shapes and three color variants. In addition, special versions with grippier XC tires and a suspension seatpost for longer trips off the road are available.

Correct frame size ? How we deliver bikes

Product details

Akku type

630 Wh - FLYER FIB-630 FIT (630 Wh / 17.75 Ah / 36 V)

Motor type

Panasonic GX Ultimate FIT

Display

FIT 2.0 Compact

E-Bike Components

Motor manufacturer	Panasonic
Motor type	Panasonic GX Ultimate FIT
Display	FIT 2.0 Compact
Akku	630 Wh
Akku type	FLYER FIB-630 FIT (630 Wh / 17.75 Ah / 36 V)
Charger	FIT Charger 36V 4A

Gears

Rear derailleur	Shimano Alivio, 9 Gang, 11-36t
Cassette	Shimano Alivio CS-HG400, 9 Gang, 11-36t
Shifter	Shimano Alivio SL-M3100 w OG, 9 Gang

Brakes

Front brake	Shimano MT402, Shimano SM-RT30M2, 180 mm
Rear brake	Shimano MT402, Shimano SM-RT30MJ, 180 mm
Brake levers	Shimano MT402

Cockpit & Seating

Stem	ART CI-01 BK 31.8x95mm
Headset	VP CI Tapered Set
Handlebar	Lenker Humpert Ergo
Handles	FLYER Comfort
Seatpost	FLYER Alloy, 30.9 x 300 (S) / 350 (M-XL) mm
Saddle clamp	Metal Upward FY-CV3 38.6/30.9mm QR
Saddle	Selle Royal Nuvola

Other Specs

Luggage carrier	FLYER Versatile Rack, MonkeyLoad, inkl. Federklappe
Stand	Ursus Mooi
Front light	FLYER HL-2
Rear light	FLYER RL-2
Mudguards	SunnyWheel 70mm

Frame

Frame-Material	Aluminium
Wheel-Size	28"
Fork	SR Suntour Mobie-A32 Coil, 75 mm Federweg, 15 x 100 mm Axle
Frametype	Trapez

Suspension

Front travel	75mm

Drive Unit

Crank	Samox EC40, 170 mm
Chain	Shimano CN-E6070
Front hub	Shimano Alivio HB-MT400, 32h
Rear hub	Shimano Alivio FH-M4050, 32h
Bottom bracket	n/a (included in drive unit)
Front tire	Schwalbe Al Grounder 29 x 2.35 (60-622)
Rear tire	Schwalbe Al Grounder 29 x 2.35 (60-622)
Spokes	Front: DT Swiss Champion 2.0 x 294/292 mm / Rear: DT Swiss Champion 2.0 x 292mm

Other

Pedals	FLYER Wellgo
Model year	2023
Color	Orange/Rot
Weight	29 kg
Permissible total weight	149 kg
EBikeKategorie	E-Trekking-Bikes
Gender	Unisex

MPN: FS0037852

8720157592952
